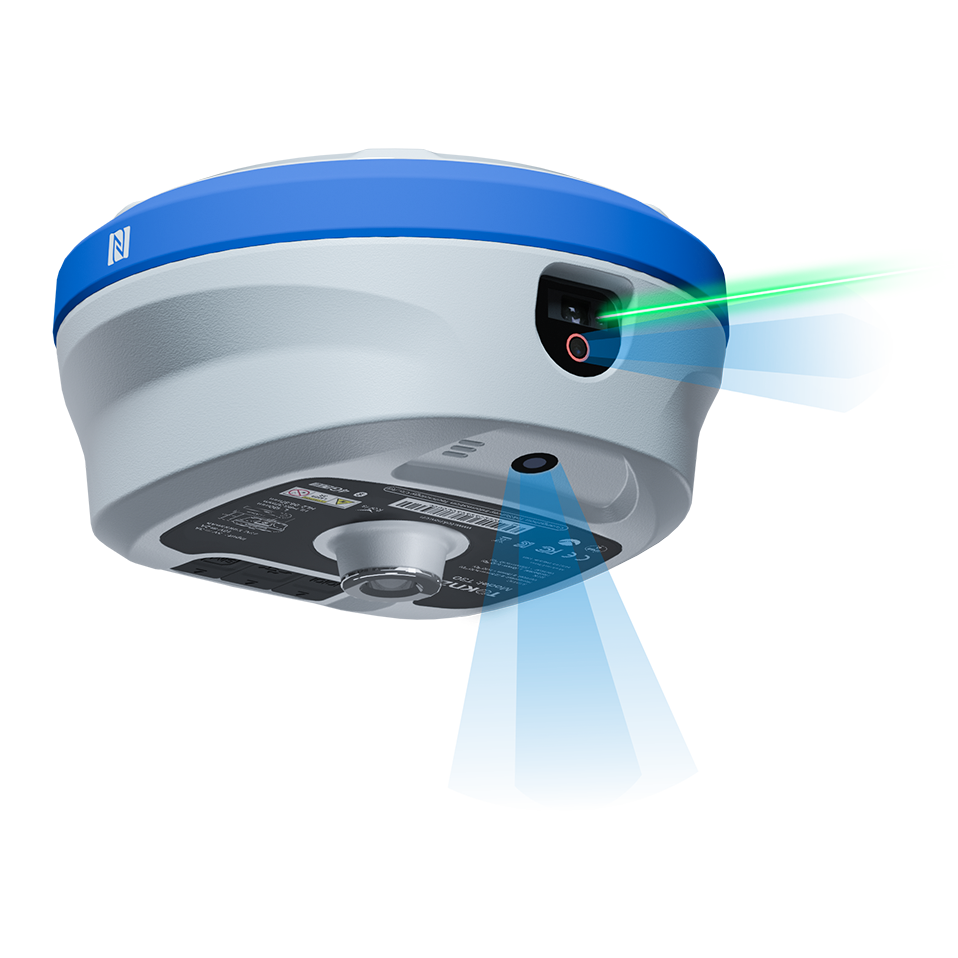

T30

Laser Measurement RTK

T30 is a full-featured GNSS receiver designed for long battery life and high precision. It includes an advanced positioning module supporting full-system and multi-frequency satellite signal tracking. Equipped with 4G universal connectivity, Bluetooth, WiFi, a 5W data radio, and a large-capacity battery, it can operate continuously for up to two days on a single charge. The device integrates a high-precision inertial navigation system combined with AR and laser camera technology for AR stakeout and laser measurement, and augmented reality plotting, making surveying tasks more efficient and convenient.

t30
分组 3

Full System GNSS Reception

分组 3

Integrated 4G and 5W radio enable simultaneous network and radio differential transmission

分组 3

Built in 13800mAh battery, works for 2 days on a single charge

分组 3

The latest generation IMU technology

分组 3

Laser Measurement & AR Real-Time Stakeout

Product Parameters

tbase size

Size

Φ174.9mm*104.9mm

直线 2

Weight

1500g

线

Operating System

Channel

GNSS Tracking

Data Communication

Data Storage

Protection

Work Time

Linux

1408

GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS

4G, Bluetooth, WiFi, Radio

32GB storage

IP68

48 hours

Equipped with electronic fence system, Toknav’s product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.
