NET660i-1U

Unmanned vehicles positioning receiver

NET660i-1U is a high-performance, compact GNSS receiver designed for unmanned vehicles. lt features the latest high-performance automotive-grade positioning chip an integrated MEMS inertial measurement unit, and a functional safety processor. The receiver supports high-performance RTK positioning and deeply coupled navigation algorithms, effectively addressing challenges such as satellite signal interference, blockage, and multipath effects. lt provides continuous, real-time, and reliable high-precision position and posture information, suitable for applications in intelligent driving, precision agriculture, and intelligent robotics.

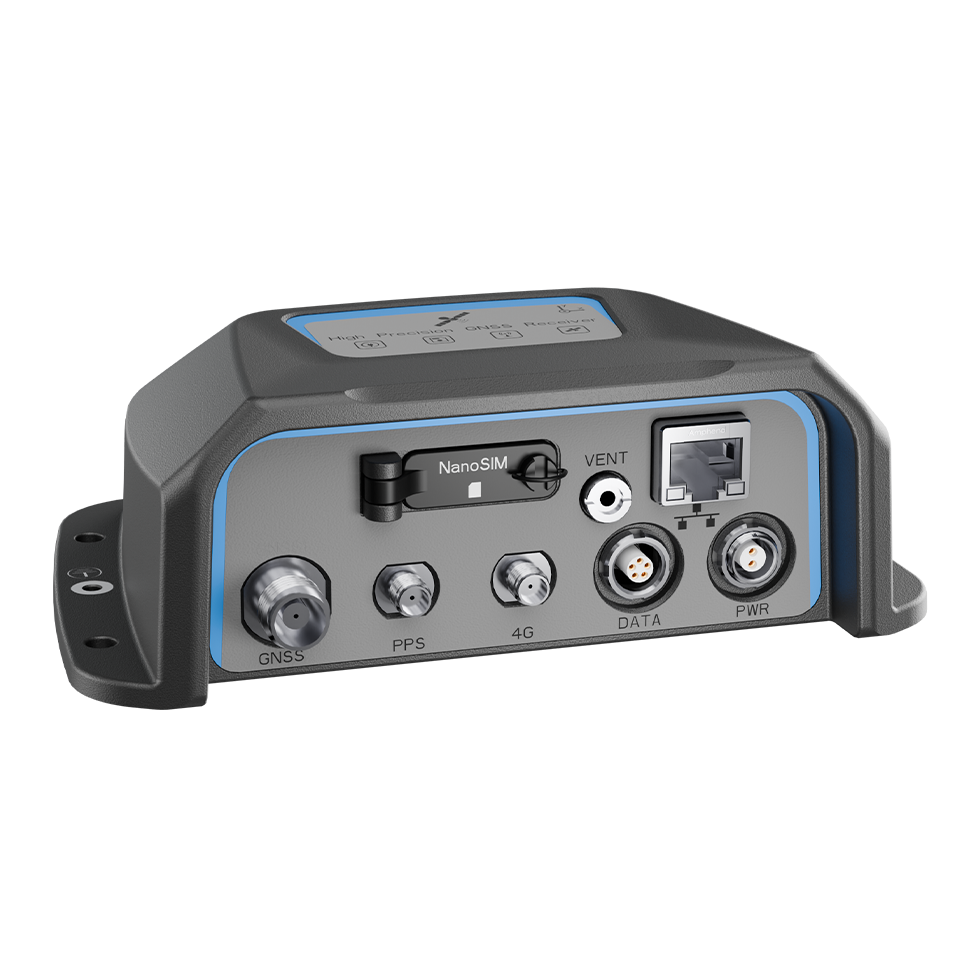

net660i 1u 侧面
分组 3

All-system dual-frequency

分组 3

PPP-B2b, PPP-E6, SBAS supported

分组 3

Built-in Deeply Coupled Navigation Algorithm

分组 3

Compatibility with Multiple Protocols

分组 3

Safe encrypted data and cloud management

Product Parameters

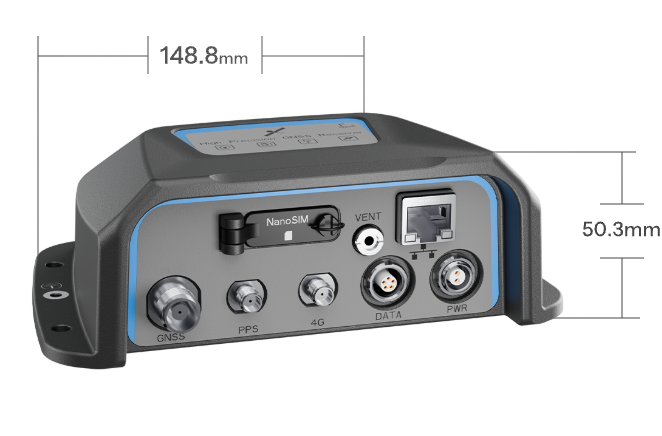

net660i 1u size

Size

148*105*50.3mm

直线 2

Weight

490g

线

Operating System

Channel

GNSS Tracking

Data Communication

Data Storage

Protection

Linux

1507

GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS

Serial Port, Network, USB

32GB storage

IP68

Equipped with electronic fence system, Toknav’s product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.
